Mindray TE7 / TE5

Galéria produktu:

  • Capture One Catalog1106y
  • Capture One Catalog1097y
  • Capture One Catalog1084y
  • Capture One Catalog1065y
  • Capture One Catalog1044y
  • Capture One Catalog1004y
  • Capture One Catalog0987y
  • Capture One Catalog0981y
  • Capture One Catalog0959y
  • Capture One Catalog0754w

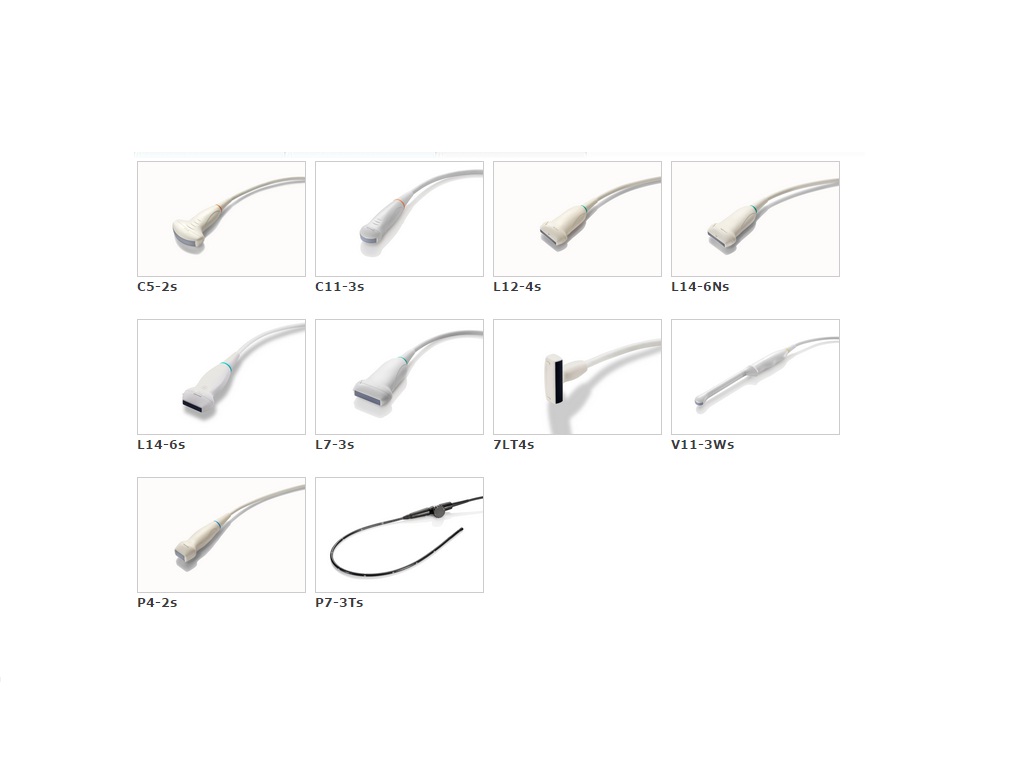

  • sondy


TE5 je rovnaký modul ako TE7, len bez EKG modulu.

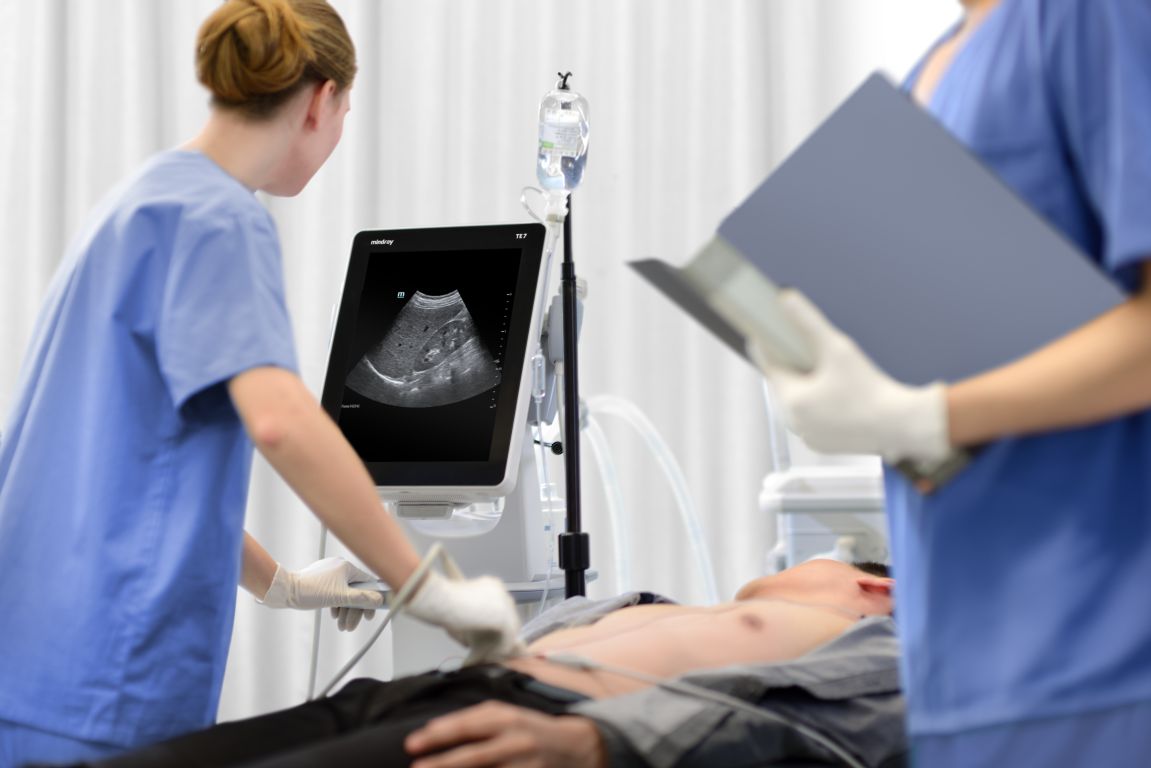

The TE7 touch screen ultrasound system is designed to provide superior quality imaging for rapid patient-care decisions. Intuitive gesture controls and efficient focused point-of-care exams minimize the user learning curve, with no need to navigate a knob cluttered keyboard. Touch enabled response, targeted application presets, and one touch image optimization improve diagnostic confidence and efficiency. Extract and go capability with its unique retractable power cable and built-in battery makes TE7 always ready for the point-of-care ultrasound environment.

Intuitive User Experience

Touch Enabled Response

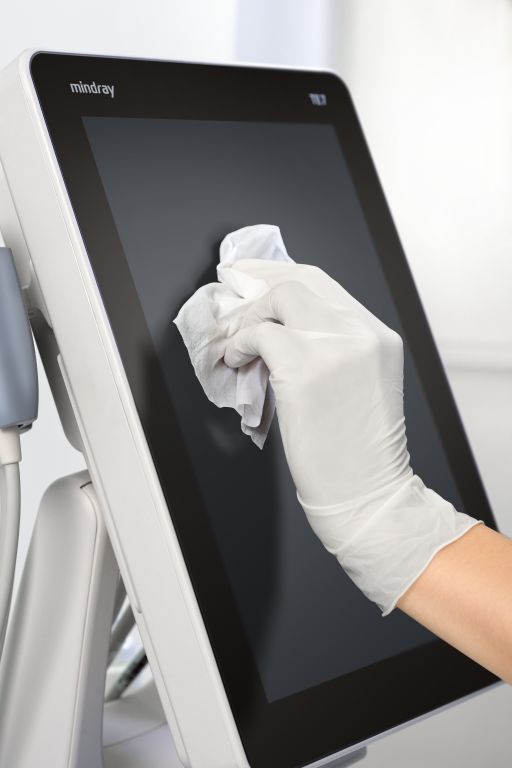

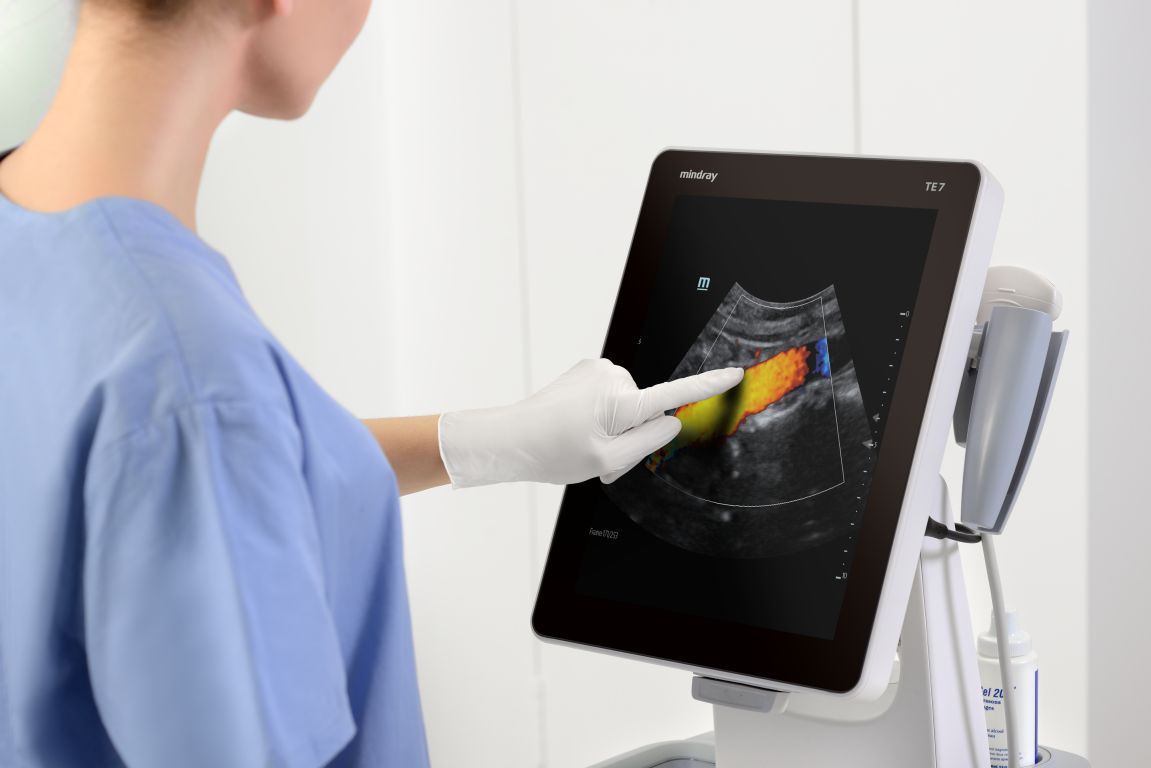

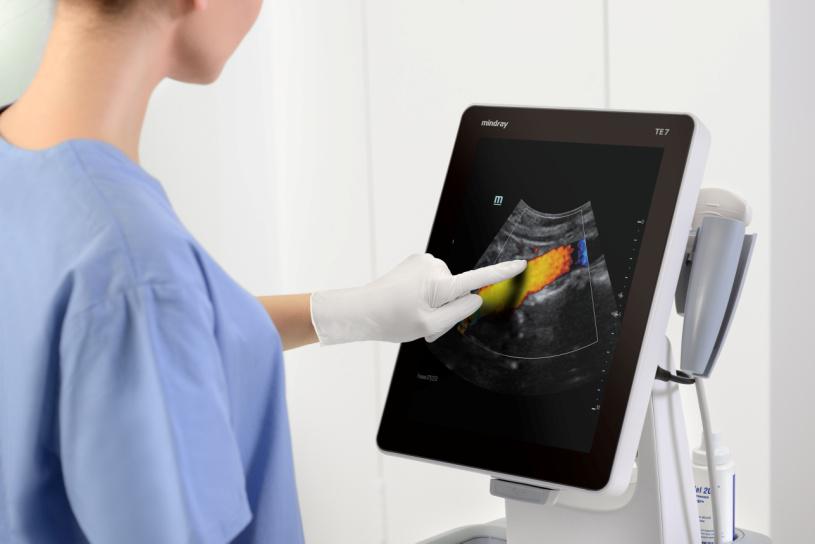

User-defined functionality provides a new standard of point-of-care ultrasound. State-of-the-art fingertip operation, even with gel covered gloves, provides simple control and setting optimization at the swipe of a finger.



Touch-screen Gestures
With touch screen gestures: tap to open or close functions, drag to adjust parameters, move objects, pinch to zoom in or out, slide for multi-selection, and even swipe to expand the image…all with a fingertip. A unique simple, yet smart ultrasound system for point-of-care.



Touch Wake Up
3 seconds boot up from standby by one touch

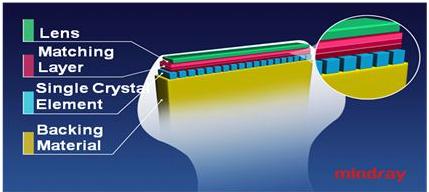

3T Transducer Technology
Mindray’s patent transducer technology to increase image bandwidth and transmission efficiency.

  • Triple-matching layer design for higher sensitivity, wider bandwidth, and improved S/N
  • Total-cut design for lower cross-talk noise, better directivity, and improved lateral resolution
  • Thermal-control design for better acoustic transmission



PSH™ (Phase Shift Harmonic Imaging)
Purified Harmonic Imaging for better contrast resolution providing clearer images with excellent resolution and less noise

Permits use of multiple scanned angles to form a single image, resulting in enhanced contrast resolution and improved visualization

Gain improved image quality based on auto structure detection

  • Sharper & Continuous Edges
  • Smooth Uniform Tissues
  • Cleaner ‘no echo areas’

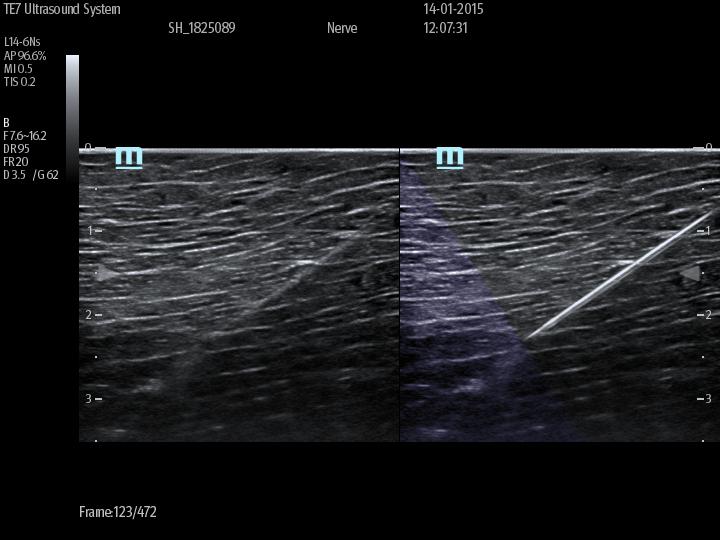

B-Steer/ iNeedle™

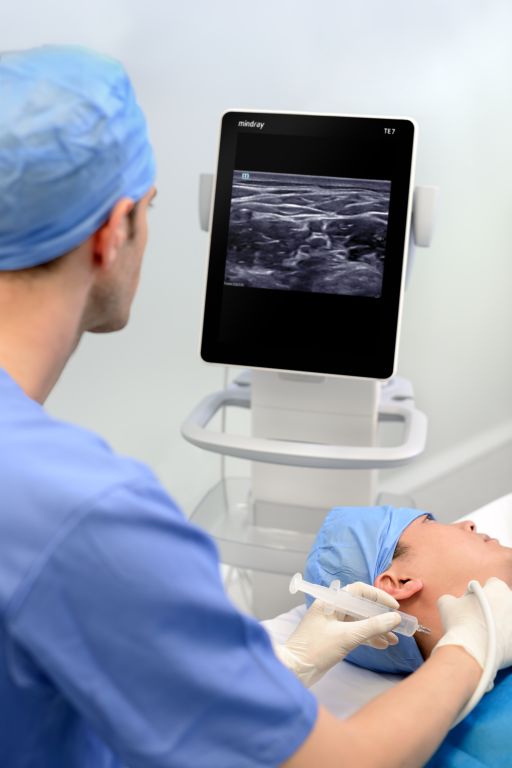

Your tool for deeper biopsy: allowing adjustments to the scan line to gain better visibility of the needle, nerves and small vessels.


Simplified Workflow

Gain instant auto image optimization in B, Color and PW Modes on the touch of a single key

Smart Track
Mindray’s unique function: Continuously track the color flow and optimize the best Color box position and angle in real time scanning.

Gain instant full screen view by a swipe

Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively

Interactive App that could transfer clinical images/cines and reports from TE7 to IOS smart devices via WiFi

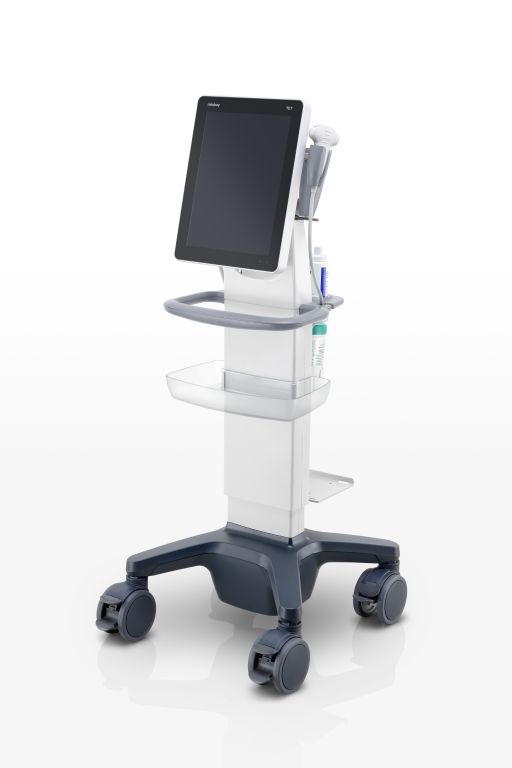

Ergonomic Design

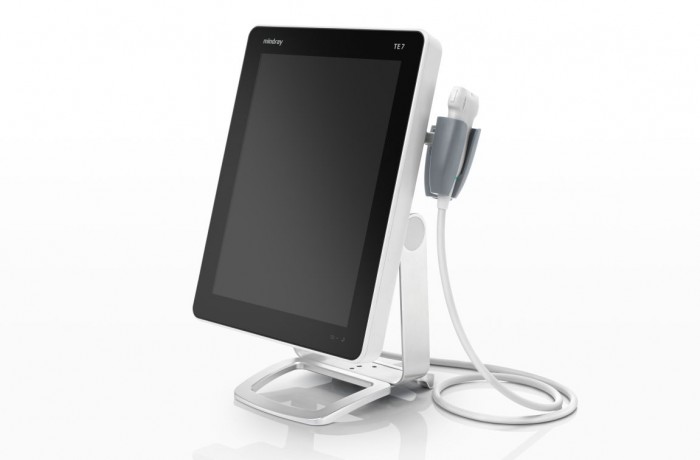

  • 15’’ touch screen with anti-glare and wide viewing angle
  • Max three transducer connectors for on-screen transducer selection
  • Convenient accessory supply bins
  • Built-in battery and built-in wireless network
  • Unique retractable power cable for extended range and efficient transport and storage
